Slurry Pump   Model K10 ( 40A 1 - 1/2" )

SPECIFICATION

Aluminium
 Max. Discharge Volume   Rubber family   330 L/min
  Teflon® family   230 L/min
Size   Suction/Discharge
  Port		   1 -  1/2" F
  Inlet Port   1/2" F
  Outlet Port   1/2" F ( SC )
  witn muffler
Stainless cast iron
 Max. Size Solids   Less than
   7 m/m
Weight   Aluminium   21.0 Kg
  Stainless cast iron   36.0 Kg


 Pump Selection

K10 ( 40A 1 - 1/2" )

(1) Material of Wetted Part (2) Diaphragms (3) Ball Valves (4) Special Design
L  Alminium V  Viton® V  Viton® None  Standard
Z Stainless cast iron R  Hytrel® U  Nytrel B  Anti-abrasion
    T  Teflon® T  Teflon®
    E  EDPM Z  Stainless
    S  Neoplene®

EXAMPLE Material of Wetted Part Diaphragms Ball Valves Special Design
K10ZTT - Z  Stainless - T  Teflon® - T  Teflon® - None

Performance curve

Click to enlarge

Dimensiolal Drawing

Click Figure to enlarge

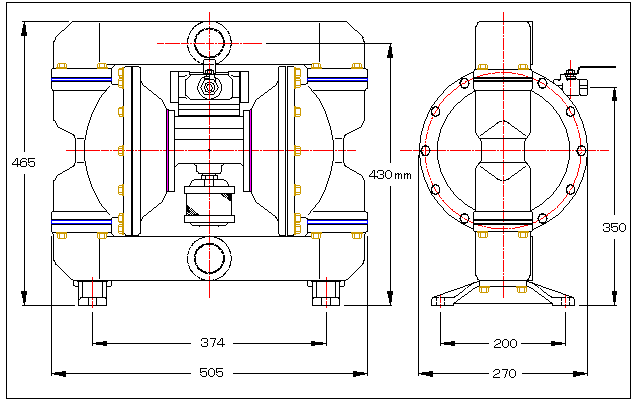

Alminium

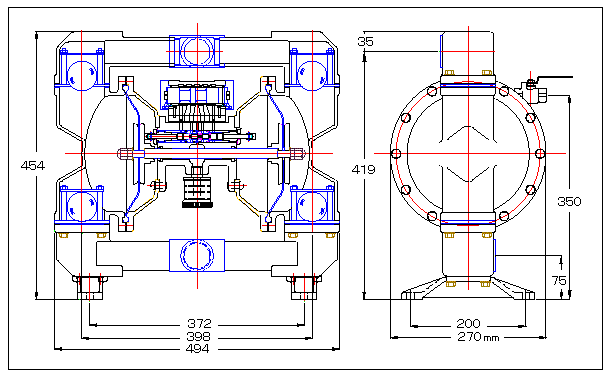

Stainless cast iron
