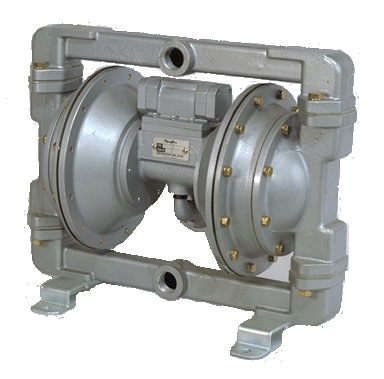

Slurry Pump Model K10x2 ( 25A 1" )
SPECIFICATION
Aluminium
|
Max. Discharge Volume | Rubber family | 110 L/min |
|---|---|---|---|
| Teflon® family | - | ||
| Size | Suction/Discharge Port |
1" F | |
| Inlet Port | 1/2" F | ||
| Outlet Port | 1/2" F ( SC ) witn muffler | ||
Stainless
cast iron
|
Max. Size Solids | Less than 5 m/m | |
| Weight | Aluminium | 23.0 Kg | |
| Stainless cast iron | 42.0 Kg | ||
Pump Selection
| K10x2 ( 25A 1" ) | |
| (1) Material of Wetted Part | (2) Diaphragms | (3) Ball Valves | (4) Special Design | ||||
| L | Alminium | R | Hytrel® | Z | Stainless | None | Standard |
| Z | Stainless cast iron | T | Teflon® | U | Nytrel | B | Anti-abrasion |
| S | Neoplene® | T | Teflon® | ||||
| S | Neoplene® | ||||||
| EXAMPLE | Material of Wetted Part | Diaphragms | Ball Valves | Special Design | ||||
| K10x2ZTT | - | Z Stainless | - | T Teflon® | - | T Teflon® | - | None |

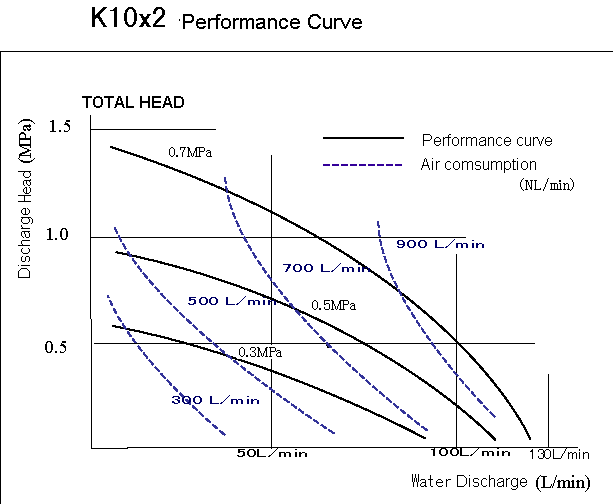

Performance curve
|

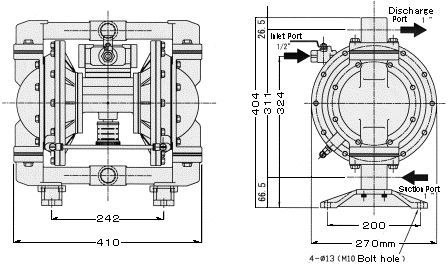

Dimensiolal Drawing
|
||||
Click to enlarge
