Slurry Pump   Model K14 ( 50A 2" )

SPECIFICATION

Aluminium
 Max. Discharge Volume   Rubber family   550 L/min
  Teflon® family -
Size   Suction/Discharge
  Port		      2" F
  Inlet Port   1/2" F
  Outlet Port   1/2" F ( SC )
  witn muffler
Stainless cast iron
 Max. Size Solids   Less than
   8 m/m
Weight   Aluminium   33.0 Kg
  Stainless cast iron   49.0 Kg


 Pump Selection

K14 ( 50A   2" )

(1) Material of Wetted Part (2) Diaphragms (3) Ball Valves (4) Special Design
L  Alminium V  Viton® V  Viton® None  Standard
Z Stainless cast iron R  Hytrel® U  Nytril B  Anti-abrasion
    U  Nytril T  Teflon®
    T  Teflon® Z  Stainless
    S  Neoplene® S  Neoplene®

EXAMPLE Material of Wetted Part Diaphragms Ball Valves Special Design
K14ZTT - Z  Stainless - T  Teflon® - T  Teflon® - None

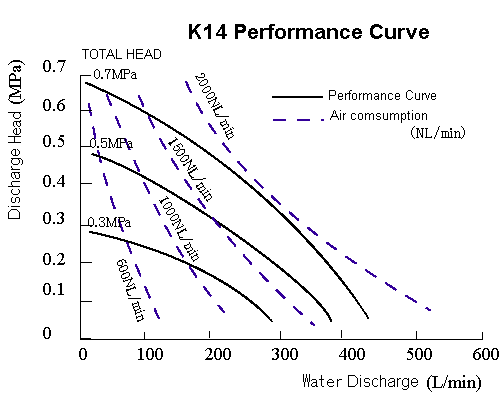

Performance curve

Click to enlarge

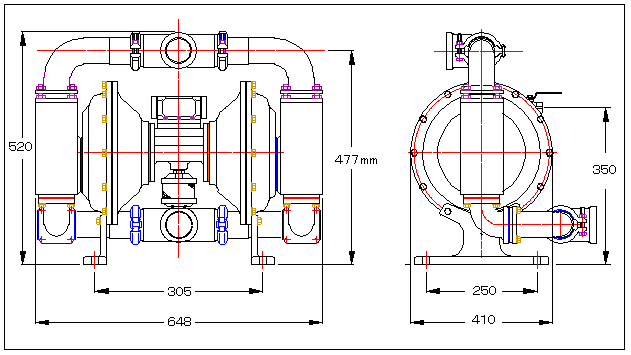

Dimensiolal Drawing

Click Figure to enlarge

Alminium & Stainless ( same size )
