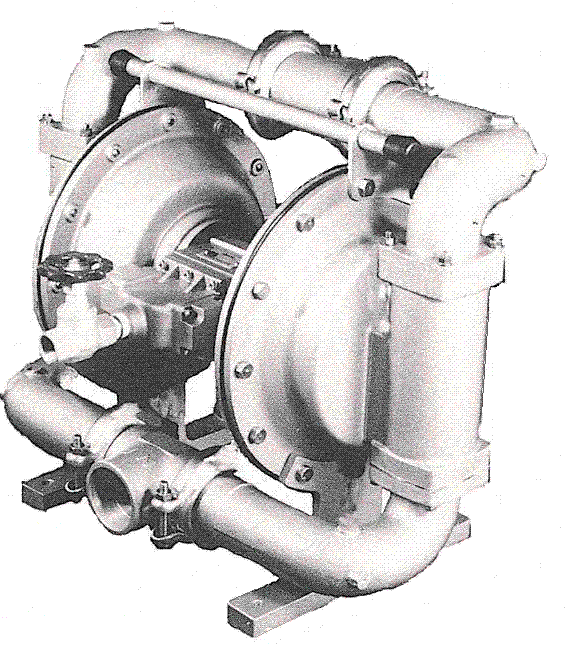

Slurry Pump   Model K17 ( 80A JIS10K )

SPECIFICATION

Stainless cast iron
 Max. Discharge Volume   Rubber family   750 L/min
  Teflon® family -
Size   Suction/Discharge
  Port		   80A JIS10K
  Inlet Port   3/4" F
  Outlet Port   1/2" F ( SC )
  witn muffler
Max. Size Solids   Less than
   10 m/m
Weight   Aluminium   54.0 Kg
  Stainless cast iron   95.0 Kg

 Pump Selection

K17 ( 80A JIS10K )

(1) Material of Wetted Part (2) Diaphragms (3) Ball Valves (4) Special Design
L  Alminium R  Hytrel® Z  Stainless None  Standard
Z Stainless cast iron T  Teflon® U  Nytril B  Anti-abrasion
    S  Neoplene® T  Teflon®
        S  Neoplene®

EXAMPLE Material of Wetted Part Diaphragms Ball Valves Special Design
K17ZTT - Z  Stainless - T  Teflon® - T  Teflon® - None

Performance curve

Click to enlarge

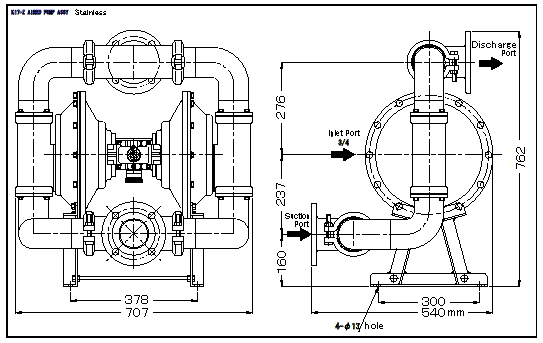

Dimensiolal Drawing

Click Figure to enlarge
Alminium & Stainless ( same size )
