Slurry Pump   Model K2 ( 6A 1/4")  with Regulator

SPECIFICATION

Aluminium
 Max. Discharge Volume   Rubber family   10 L/min
  Teflon® family    10 L/min
Size  Suction/Discharge
  Port		   1/4" F
  Inlet Port   1/4" F
  Outlet Port  1/8" F witn muffler
Plypropylene
 PVDF (KYNAR®)
 Max. Size Solids   Less than 1 m/m
Weight   Alminium   1.2 Kg
  Polypropylene   0.9 Kg
  PVDF (KYNAR®)   1.1 Kg

Pump Selection

K2 ( 6A 1/4")

(1) Material of Wetted Part (2) Diaphragms (3) Ball Valves (4) Special Design
L  Alminium V  Viton® V  Viton®  None  Standard
P  Polypropylene R  Hytrel® C  Ceramics B  Anti-abrasion
F  PVDF (KYNAR®) T  Teflon® T  Teflon®
S  Neoplene® S  Neoplene®
U  Nytrel U  Nytrel

EXAMPLE Material of Wetted Part Diaphragms Ball Valves Special Design
K2LRT - L  Alminium - R  Hytrel® - T  Teflon® - None

Performance curve

Click to enlarge

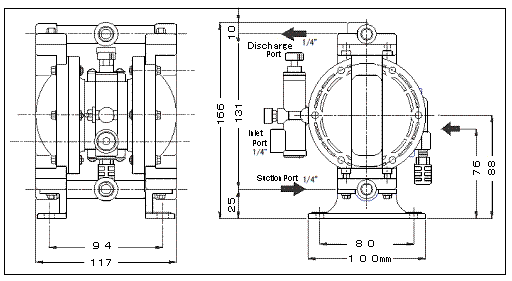

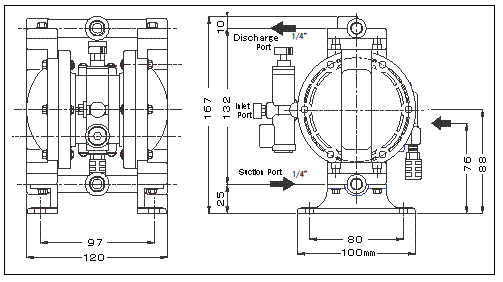

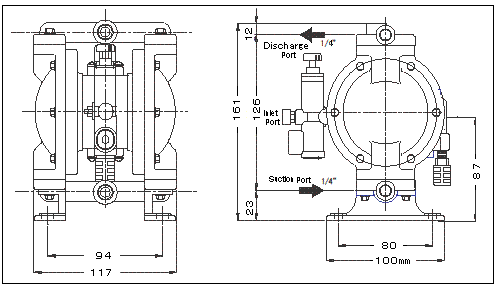

Dimensiolal Drawing

Click Figure to enlarge

Alminium



Polypropylene(PP)

KYNAR®(PVDF)
