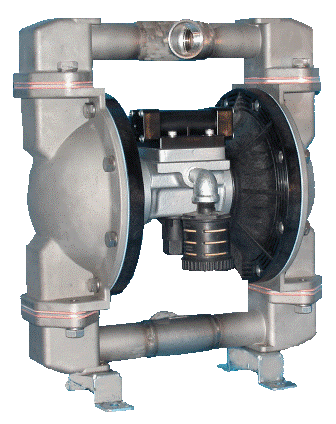

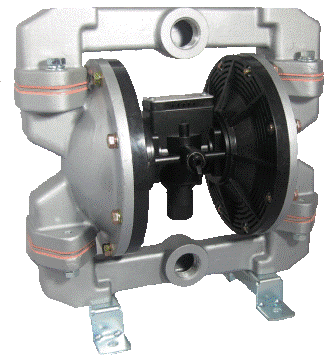

Slurry Pump Model K8 ( 25A 1" )
SPECIFICATION
Aluminium
|
Stainless
cast iron
|
Max. Discharge Volume | Rubber family | 110 L/min |
|---|---|---|---|---|
| Teflon® family | 77 L/min | |||
| Size | Suction/Discharget Port |
1" F | ||
| Inlet Port | 3/8" F | |||
| Outle Port | 3/8" F ( SC ) witn muffler |
|||
Plypropylene
|
PVDF (KYNAR®)
|
Max. Size Solids | Less than 5 m/m |
|
| Weight | Aluminium | 10.0 Kg | ||
| Stainless cast iron | 15.0 Kg | |||
| Plypropylene | 5.3 Kg | |||
| PVDF (KYNAR®) | 5.5 Kg | |||
Pump Selection
| K8 ( 25A 1" ) | |
| (1) Material of Wetted Part | (2) Diaphragms | (3) Ball Valves | (4) Special Design | ||||
| L | Alminium | V | Viton® | V | Viton® | None | Standard |
| Z | Stainless cast iron | R | Hytrel® | U | Nytrel | B | Anti-abrasion |
| P | Polypropylene | S | Neoplene® | T | Teflon® | SP | Special Spec |
| F | PVDF (KYNAR®) | E | EDPM | Z | Stainless | ||
| E | EDPM | ||||||
| EXAMPLE | Material of Wetted Part | Diaphragms | Ball Valves | Special Design | ||||
| K8ZTT | - | Z Stainless | - | T Teflon® | - | T Teflon® | - | None |
Performance curve
|

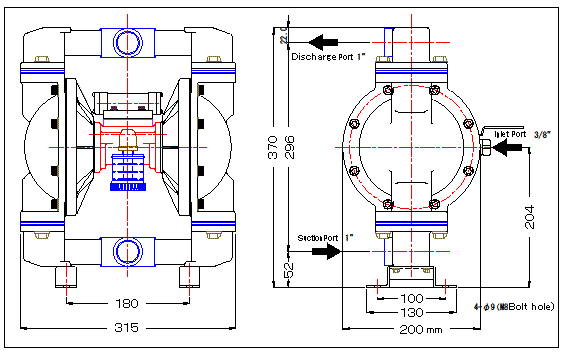

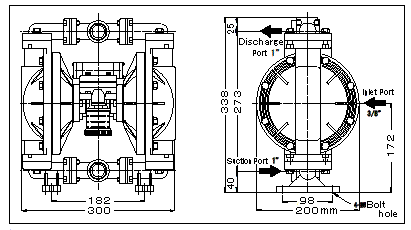

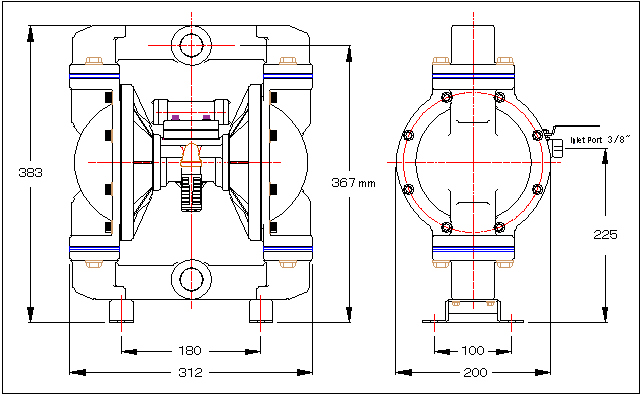

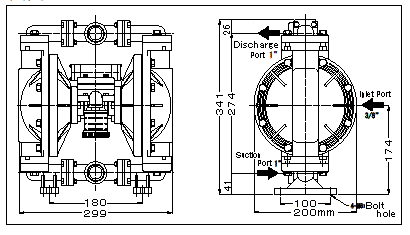

Dimensiolal Drawing
|
||||||
Click to enlarge
