Compact type drum pump Model Q4 ( 15A  1/2" )

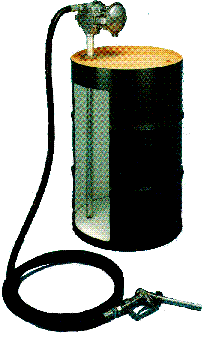

Drum Pump with hose nozzle

  Whole liquid in the Drum is pumed up four or five minutes.
Featurs
  • Complete self-priming from a dry start.
  • Leak-proof because of no revolving shaft.
  • Does not require any electrical controls. (Operated by compressed air)
  • Easy to control flow volume.
  • Handles a brood range of liquids.
    The operation can be stopped when you close the discharge valve.

SPECIFICATION

Max. Discharge Volume   Rubber family 40 L/min
  Teflon® family 28 L/min
Size   Suction Port ø38 RC (F)  with suction pipe
  Discharge Port 1/2" RC (F)
  Inlet Port 1/4" RC (F)  with needle Valves
  Outlet Port  ø 3mm x 5 option : witn muffler
Weight   Aluminium 4.0 kg
  Stainless cast iron -
  Cast iron -
Max. Size Solids less than 2 m/m

 Pump Selection

Q4 15A 1/2"

(1) Material of Wetted Part (2) Diaphragms (3) Ball Valves (4) Special Design
L  Aluminium V  Viton®
 (Acid or Alkali )		 V  Viton®
 (Acid or Alkali )		 d  Drum type
Z  Stainless cast iron R  Hytrel® (Oil ) R  Hytrel® (Oil )
C  Cast iron T  Teflon® (Solvent) T  Teflon® (Solvent)
    S  Neoplene® S  Neoplene®

EXSAMPLE Material of Wetted Part Diaphragms Ball Valves Special Design
Q4ZTT-d -  Z  Stainless cast iron -  T  Teflon® -  T  Teflon® - d  Drum type

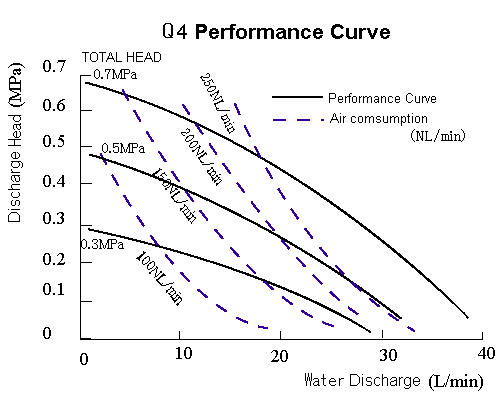

Performance curve

Click to enlarge



Dimensiolal Drawing

Click Figure to enlarge
Alminium & Stainless cast iron ( Same Size )
