Compact type drum pump Model Q6 ( 20A  3/4" )

Drum Pump standard type

  Whole liquid in the Drum is pumed up four or five minutes.
Featurs
  • Complete self-priming from a dry start.
  • Leak-proof because of no revolving shaft.
  • Does not require any electrical controls. (Operated by compressed air)
  • Easy to control flow volume.
  • Handles a brood range of liquids.
    The operation can be stopped when you close the discharge valve.

SPECIFICATION

Max. Discharge Volume   Rubber family 50 L/min
  Teflon® family 35 L/min
Size   Suction Port ø38 RC (F)  with suction pipe
  Discharge Port 3/4" RC (F)
  Inlet Port 1/4" RC (F)  with needle Valves
  Outlet Port  ø 3mm x 5 ( option : witn muffler )
Weight   Aluminium 6.0 kg
  Stainless cast iron -
  Cast iron -
Max. Size Solids less than 3 m/m

Pump Selection

Q6 20A 3/4"

(1) Material of Wetted Part (2) Diaphragms (3) Ball Valves (4) Special Design
L  Aluminium V  Viton®
 (Acid or Alkali )		 V  Viton®
 (Acid or Alkali )		 d  Drum type
Z  Stainless cast iron R  Hytrel® (Oil ) R  Hytrel® (Oil )
C  Cast iron T  Teflon® (Solvent) T  Teflon® (Solvent)
    S  Neoplene® S  Neoplene®

EXSAMPLE Material of Wetted Part Diaphragms Ball Valves Special Design
Q6ZTT-d -  Z  Stainless cast iron -  T  Teflon® -  T  Teflon® - d  Drum type

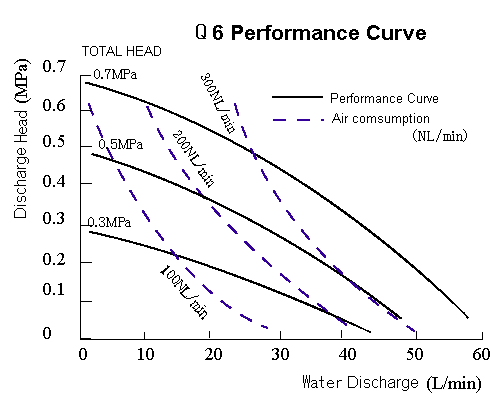

Performance curve

Click to enlarge

Dimensiolal Drawing

Click Figure to enlarge

Alminium & Stainless cast iron ( Same Size )
