Slurry Pump Model K3 ( 10A 3/8" )
SPECIFICATION

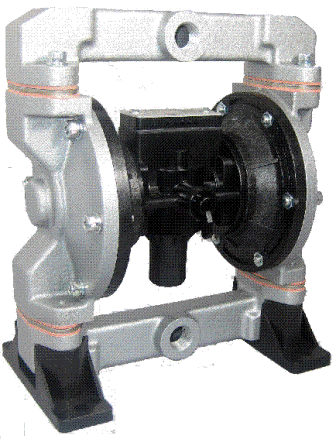

Aluminium
|

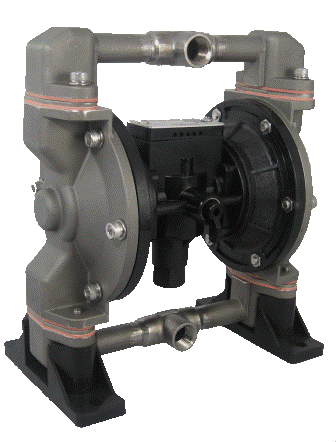

Stainless
cast iron
|
Max. Discharge Volume | Rubber family | 20 L/min |
|---|---|---|---|---|
| Teflon® family | 14 L/min | |||
| Size | Suction/Discharge Port |
3/8" F | ||
| Inlet Port | 1/4" F | |||
| Outlet Port (option) |
ø 3mm x 5 (3/8"F witn muffler) |
|||

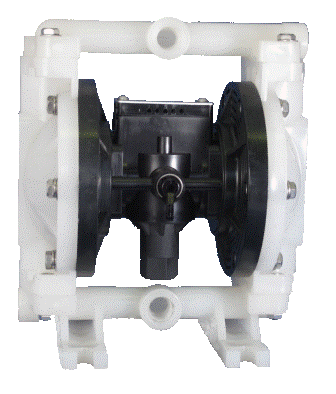

Plypropylene
|
PVDF
(KYNAR®)
|
Max. Size Solids | Less than 2 m/m |
|
| Weight | Aluminium | 2.8 Kg | ||
| Stainless cast iron | 4.2 Kg | |||
| Plypropylene | 1.7 Kg | |||
| PVDF (KYNAR®) | 2.2 Kg | |||
| * Restart Operation Valve turns to
Switching Valve. * We can change Discharge Port to 3/8" F ( with muffler ). |
Pump Selection
| K3 ( 10A 3/8" ) | |
| (1) Material of Wetted Part | (2) Diaphragms | (3) Ball Valves | (4) Special Design | ||||
| L | Alminium | V | Viton® | V | Viton® | None | Standard |
| Z | Stainless cast iron | R | Hytrel® | U | Nytrel | B | Anti-abrasion |
| P | Polypropylene | T | Teflon® | T | Teflon® | ||
| F | PVDF (KYNAR®) | S | Neoplene® | S | Neoplene® | ||
| EXAMPLE | Material of Wetted Part | Diaphragms | Ball Valves | Special Design | ||||
| K3ZTT | - | Z Stainless | - | T Teflon® | - | T Teflon® | - | None |

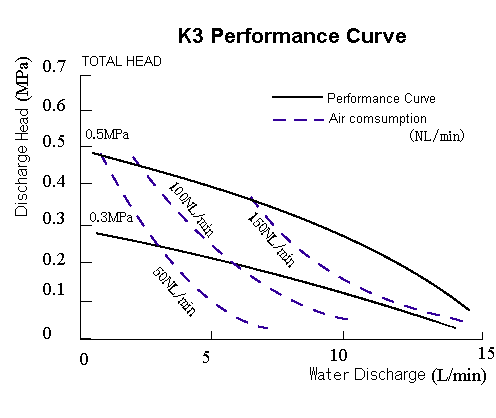

Performance curve
|

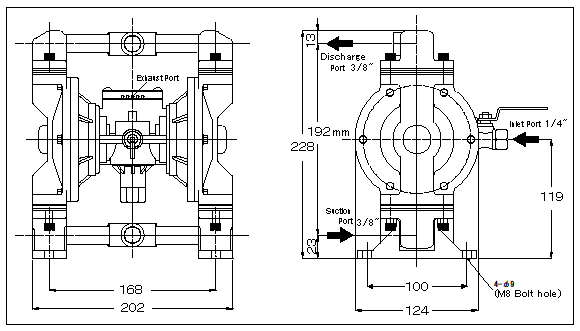

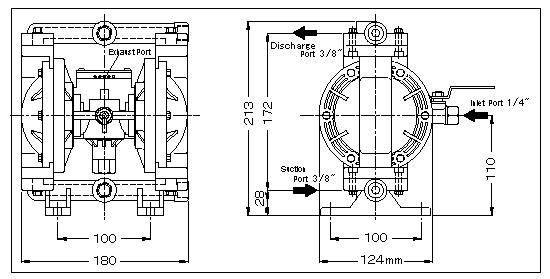

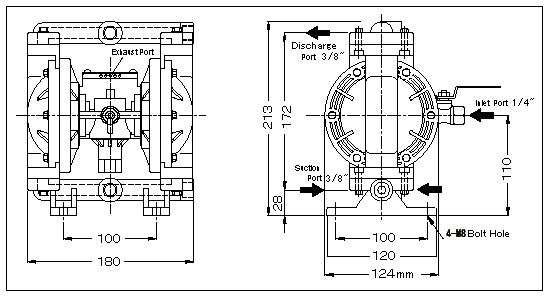

Dimensiolal Drawing
|
||||||
Click to enlarge
